Strippit
R-Series  &  H-Series  Workclamps
This Type of Workclamps is used on the Following Strippit Machines;

---  FC630R                                   ---  FC1250R
---  FC1000R                                 ---  FC1250R/2
---  FC1000R2                               ---  FC1250XP
---  FC1000R/20                            ---  FC1250XP20
---  FC1000/20                              ---  FC1250H20
---  FC1000XP
---  FC1000XP20
---  FC1000H20

Because Strippit has No Engineering Discipline,
There are  Several Variations  &  Sub-Variations of this Same Basic Workclamp!

Note!  Some Workclamps use All Inch Screws & Bolts,  Some use Metric Screws & Bolts,  and  Many are a  Mix of  Both  Inch & Metric  Screws & Bolts!
When Ordering Repair PartsFind-Out if the Part You Need is  Inch  or  Metric!!!

The 2 Main Variations are the  "R-Type"  and  "H-Type".

Heavy Machined-Base of the Clamps are a Bit-Different,  with No-Punch Vanes Mounted on Top of some Clamps,  and on the Bottom of other Clamps.

The  5  Main Repair Parts;    #5 Upper-Jaw,   #8 Lower-Jaw
#17 Clamp-Body,    #10 Dowel-Pin,    #2 Air-Cylinder
are used Over & Over Again,  and  are the Same on  All of these Workclamps.

Above is Diagram of a Typical   R  &  H  WorkClamp.
We Stock Following Repair Parts;

#2  --  #8507107-000   Air Cylinder

#4  --  #17442-000   Elbow Air Fitting for Air Cylinder

#5  --  #120372-000   Upper-Jaw,  with  2 Carbide-Teeth for  Stronger-Gripping!

#28 --  Set-Screw used in Center of Original Strippit Upper-Jaws for  "Gripping".
          As they Do Not Hold Worth a Damn,   We do Not use this Set-Screw.
          Our Upper-Jaws use  2 Carbide-Teeth for Stronger-Gripping Power!

#8  --  #120786-000   or   #120768-000    Lower-Jaw
          Strippit used  Both Part Numbers  in their Part & Maintenance Manuals.
          Lower-Jaw  uses  4   8-32 Inch Flat-Screws  or  4   Metric Flat-Screws
          Which can be Specified at Time of Your Repair Parts Order.

#10 --  #8203212-000   Dowel Pin,  Anchors  &  Locates  the Upper-Jaw.
         These Pins Break-Easy,   Buy  Some  Extras!!!

#17 --  Clamp Body.   There were  2-Types  that Strippit Machined Differently,
          Nobody Seems to Know Why  or  When Strippit Changed these Parts!

  #120531-000  Early-Type,  Back of Body to Center of Rear Hole is about 1.660"

  #120531-Mod  Later-Type, Back of Body to Center of Rear Holes is about 1.793"
                        The  #120531-Mod  is the Most Common Type of Clamp Body!

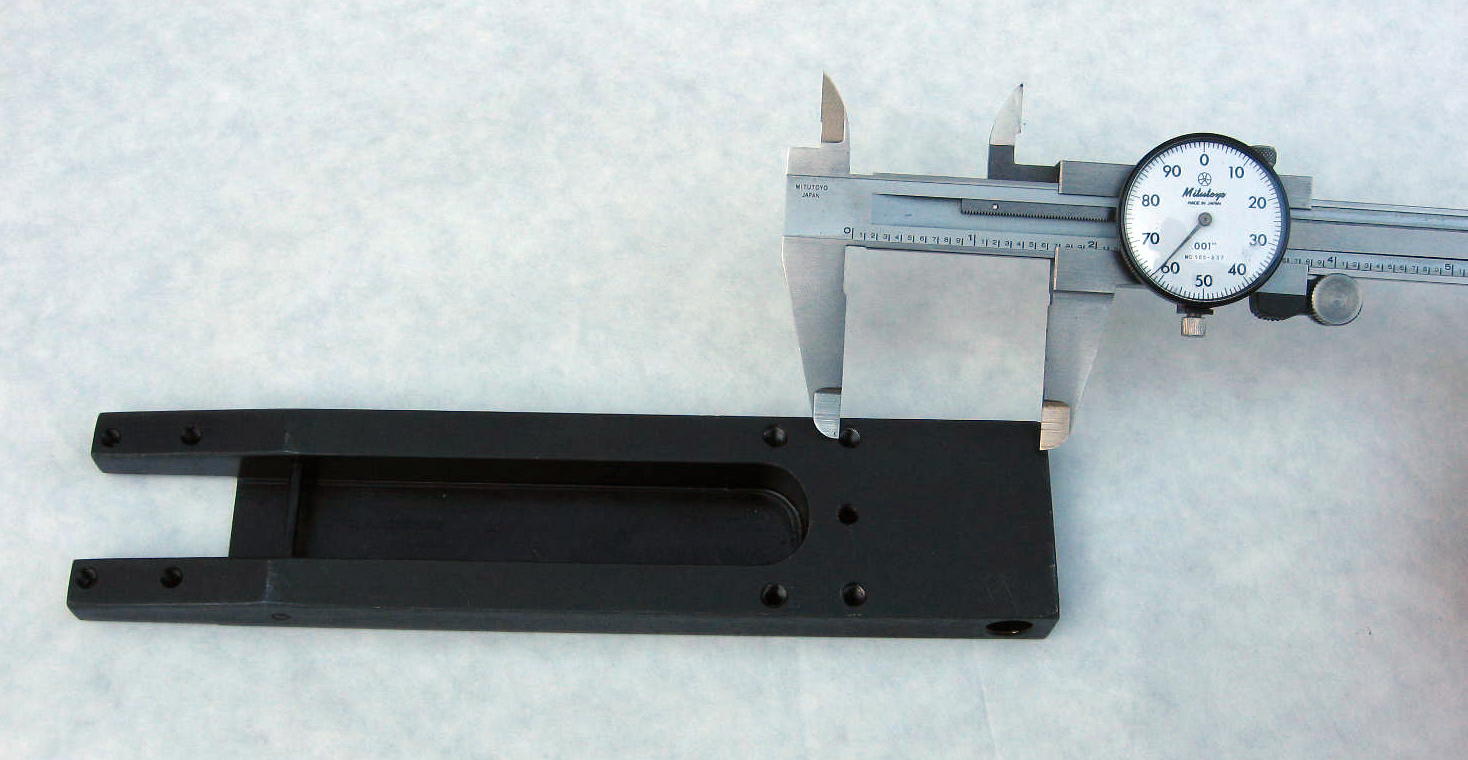

        Measure Your Clamp Body!   Photo Of This Measurement Is Below.
        Specify which Type Clamp-Body You Need!   If you have Wrong Type Body,
        #34 Cross-Bolt  will Interfere with   2   #30  Height-Adjuster  Sets!

        And,  For Strippit  to  Further Confuse Their Customers,
        Some  Strippit  Clamp Bodies were Drilled & Tapped for  Inch Screws,
        Some  Strippit  Clamp Bodies were Drilled & Tapped for  Metric Screws.

        All Our Clamp Bodies  ( Both   #120531-000  &   #120531-Mod )
        are  All  Drilled & Tapped for  Inch Screws Only!
        Four  8-32 Holes for Lower Jaw  &  Four  10-32 Holes for Height-Adjusters.
        If you are Replacing a Strippit  Metric-Tapped Body  with Our  Inch-Body,
        You will Need these  8  Inch-Type Screws for Each Clamp-Body Ordered.

#23 --  #8203213-000   3/8-Inch  Positioning Pull-Dowel Pin,
          Locates  &  Anchors  the Clamp-Body,  2 used per Workclamp.

#25 --  Flat-Head Screw,  4 used on Each Lower Jaw.   Specify Type You Need!
          #802104-00i   for the   8-32 Inch Type
          #802104-00m    for the    M4 Metric Type

#30 --  Height-Adjuster Set.   1-Set  is Used  for  Each Workclamp.
          Each Set Consists of  4 Screws  &  4 Spacers  &  2 Stop-Bars.
          And there has been  Both  Inch  &  Metric  Screw Versions!

          Specify which  Set-Type You Need,   INCH  or  METRIC!
         #30  Height-Adjuster Set--Inch,  for the   10-32  Type Inch Set.
         #30  Height-Adjuster Set--Metric,  for the   M5  Type Metric Set.

         Note that All of Our Clamp Bodies use  #30  Height-Adjuster Set--Inch.

#34 --  #802174-000   Metric Cross-Bolt  &  Metric Jam Set-Screw  for Most
          R-Type Workclamp Bases.   Cross-Bolt goes through Height-Adjusters.

          Note #1 --  Some Early Cross-Bolts are Inch Size,  Not Metric.
          Note #2 --  Some Late Workclamps do Not use Cross-Bolts at all,  but
                            uses   2   3/16" x 1"  Roll-Pins on Each Workclamp instead!

#19 & #22  --  Some Workclamps have a  #19  Bolt  &  #22  Jam Set-Screw at
          Front-Top of Workclamp.   Many Workclamps do Not have these Parts!
          Parts may be  Inch  or  Metric,  Measure yours!

#1   --  Clamp Bolt,  2 used per Workclamp to Clamp to Machine-Carriage.

         But,  We Recommend  Quick-Adjust  Handles,  Please Measure
         and  Specify if your Workclamps need   3/8-INCH  or  M10-METRIC  Type!
         #803563-inc    3/8-Inch  Quick-Adjust  Handle
         #803563-met   M10-Metric  Quick-Adjust  Handle  See Handle Photo Below.



This page was last updated: February 10, 2023
Above  is a  Typical  R-Workclamp
on a  Strippit  FC1000R  Machine.

Note,  it has the  No-Punch Vanes  on  Top.
Above  is a Typical
H-Workclamp  on a  Strippit  FC1250H20  Machine.
Note,  it has  No-Punch Vane  on  Bottom.
We also Stock Complete  New Workclamp Assemblies
like these  Shown Above.

These will work for Both Versions of  R  &  H  Workclamps.
You simply Bolt-On  No-Punch Vanes from Your Old Workclamps,
Slide Workclamps on Machine,  and Plug-In Air Hoses.
"R"  &  "H"   Workclamp Body Types,
Please  Measure & Order  The Correct-Type  Clamp Body!!!

#120531-000   Early-Type Clamp-Body,   NOT  Commonly Used Anymore,
Back of Body  to  Center of Rear Holes  is  About  1.660 Inches.

#120531-Mod   Later-Type Clamp-Body,   This is  Most Common-Type,
Back of Body  to  Center of Rear Holes  is  About  1.793 Inches.
We also Stock Complete New
Short-Workclamp  Assemblies
like these  Shown Above.

These Short-Workclamps will Move your Punch-Sheet
Back  about  7.5 Inches  in   Y-Axis
Allowing you to Run Wider Part Sheets.

These will work on All Machines that use the R & H Workclamps.
You simply Slide Workclamps on Machine, and Plug-In Air Hoses.
Machine Technologies Co.
Strippit Parts & Service
704-233-5229
Quick-Adjust
Workclamp Handles

Here is
Set of 4 Handles
for
2 Workclamps

Order Correct
3/8-Inch
or
M10-Metric
Type!

Please Note!!!

All of Strippit's Early Workclamps used  Inch-Threads
on All Bolts & Screws & Tapped-Holes.
Later-On,  Strippit Gradually Switched-Over to the Metric System.
Some Strippit Workclamps use a Mix of Both  Inch  &  Metric Screws & Bolts!

Now All Original Equipment Strippit Workclamps use only
Metric-Threads  on All Bolts & Screws & Tapped-Holes.

All Workclamps Parts that We,  The Machine Technologies Co.   Furnish,
will have  Inch-Threads  on All Bolts & Screws & Tapped-Holes.

If You Specify Metric at Time of Your Workclamp Parts Order,
we can Supply  Metric-Threads  on  Bolts & Screws,  but any
Tapped-Holes on Parts,  Like Workclamp Bodies,  will Still be  Inch-Threads.
